  • Product name: FTTH 1*1 Single Mode Mechanical Fiber Optic Switch
  • No.: 1*1
  • Shelf time: 2017-04-22
  • Views : 12
  • Sold amount: 0Piece

Feature:


• Unmatched Low Cost
• Low Insertion Loss
• High Channel Isolation
• Highly Stable and Reliable
• Epoxy-Free Optical path
• Latching or Non-Latching


Application:
• Optical Network Protection/Restoration
• Optical Signal Routing
• Configurable Optical Add/Drop
• Transmitter and Receiver Protection
• Network Test Systems
• Instrumentation

Performance Specifications:



Parameter Specification
Operating Wavelength (nm) 1260~1360 or 1510~1610 1310/1550±40
Insertion Loss (dB) P Grade A Grade P Grade A Grade
≤0.5 ≤0.6 ≤0.6 ≤0.7
WDL (dB) ≤0.25 ≤0.30
PDL (dB) ≤0.05
Channel Cross Talk (dB) ≥55
Return loss (dB) ≥55
Switching Speed (Typ.) (ms) 4 (Typ.)
Operating Voltage (V) 5
Max Power Handing (mW) 300
Durability (Cycles) 10 Million
Operating Temperature (℃) 0~70
Storage Temperature (℃) -40~85
Fiber Type G652.D or G657A1
Fiber Length (m) Customer Specify
Electrical Pin Configuration
Optical OFF ON
Electric Drive Non-Latching Pin 1 Pin 10
Latching Pin 1 Pin 5 Pin 6 Pin 10
  V+ GND GND V+
Sensor Status Non-Latching and
Latching
Pin 2-3, Pin 8-9 Open Pin 2-3, Pin 8-9 Close
Pin 3-4, Pin 7-8 Close Pin 3-4, Pin 7-8 Open

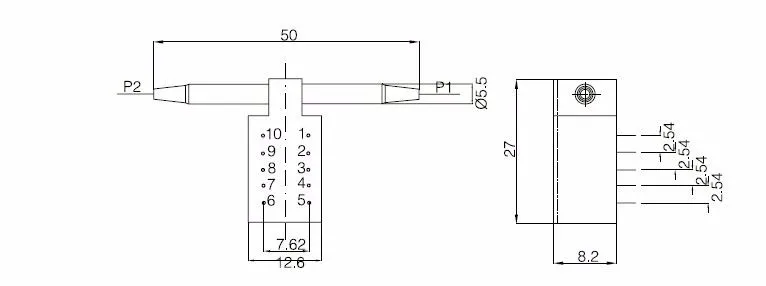

 Package Dimension:
